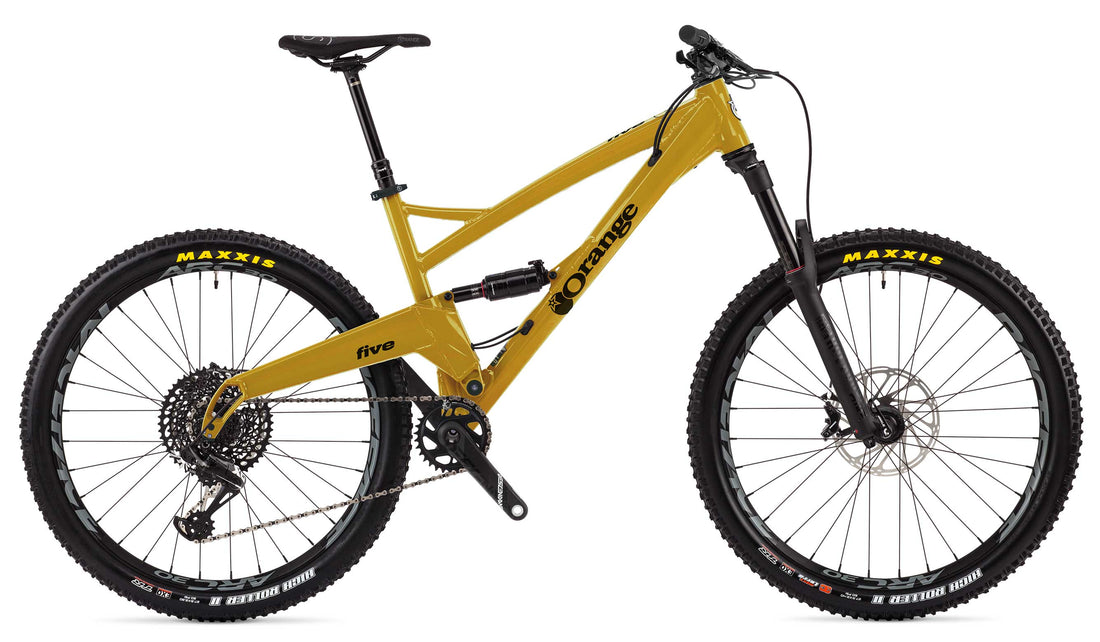

Five RS - 2019

Five RS - 2019

Overview

Why the Five RS?



  • Frame designed and built in Britain
  • 5 year frame warranty
  • Single pivot suspension for the utmost performance, efficiency and reliability
  • 27.5 inch wheels
  • Geometry optimised for 150mm front/140mm rear travel
  • Boost 148 rear hub spacing
  • Aggressive trail geometry
  • Long top tube and wheelbase for high-speed stability
  • Internal dropper post routing
  • Choose from 10 custom colours
  • Fine tune your Five with custom upgrade options



As an all-round trail bike, it is hard to argue against the Five's versatility. Its capable of delivering the goods on your daily commute to spending a week being thrashed in the Alps.

The compact rear layout makes the suspension more active than any Five to date. The skillfully crafted hollow in the downtube allows us to lower the rear shock's position in the frame which gives us improved rear shock ramp-up and a super plush suspension feel, and gains in small bump performance.

All the major frame components have extra strength-forming features, improving resistance to lateral flex and twisting forces. Boost 148 sizing at the rear hub and an extra 6mm width in the pivot spacing help here too, enabling us to add more tyre clearance. All in all with weight savings we've found in the billet machined parts, this is the lightest Five frame we’ve ever produced.

The Five has grown with us and evolved so far, with a lively ‘pop’ that really has to be experienced. Grip, trail feedback and an active ride are all there in abundance. Try it, you'll like it.

Specs & Options

SIZES AND COLOURS

Sizes
XS   S   M   L   XL
Colour
Jet Black

Select a frame size to choose colour

Decals
Orange Decals

Frame and Fork

6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 27.5. Rear wheel travel: 140.

Headset
Cane Creek 49mm For Tapered Steerer
Fork
RockShox Pike RCT3 150mm 27.5
Swingarm
Hidden Tool Free QR Lever (Boost 148mm Hub)
Rear Shock
RockShox Monarch RT3 DB 190x51

Drivetrain

Bottom Bracket
SRAM GXP
Crankset
SRAM Descendant Carbon Eagle 32t
Rear Mech
SRAM XO1 Eagle 12spd
Chain
SRAM GX Eagle
Shifters
SRAM GX1 Eagle
Cassette
SRAM XG-1275 10-50T
Chain Device

Wheel and Tyres

Wheelset
Race Face Arc 30 27.5 (Grey) + Hope Pro 4 (Black)
Tyres
Maxxis High Roller II 2.4 3c Exo TR / 2.3 Exo TR 2

Braking

Brakes
SRAM Guide RE 200/180

Finishing Kit

Seatpost
RockShox Reverb 150mm with 1x Remote
Seat Clamp
Strange Bolted
Stem
Renthal Apex 50mm
Saddle
SDG Radar Steel Rail Black/Black
Handlebars
Renthal FatBar M35 800mm
Grips
Strange 130 Lock - On Grips Black
Pedals

Geometry & Tech Info

2017-18 Five geometry
FIVE GEOMETRY
Monocoque/6061-T6 Custom Butted Aluminium tubing
Frame Size XS S M L XL
Seat Tube Length 15″ 16″ 17″ 18″ 20″
A. Head Angle 66º 66º 66º 66º 66º
B. Seat Angle Actual 72º 72º 72º 72º 72º
B. Seat Angle Effective 74º 74º 74º 74º 74º
C. Top Tube 551 568 587 608 627
D. Top Tube (effective) 575 595 615 635 655
E. BB Height (from ground) 333 333 333 333 333
BB height (from axles -20 -20 -20 -20 -20
F. Chainstay 426 426 426 426 426
G. Head Tube 100 110 110 130 140
H. Wheel base 1134 1156 1176 1199 1220
T. Rear Travel 140 140 140 140 140
J. Reach 404 422 442 457 474
K. Stack 599 608 608 626 635
Standover 691 715 720 740 790
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 706 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
150 mm 150 mm 140 mm
Shock Length 190 mm
Rear Hub 148 mm x 12mm
Rear Axle 148 mm x 12mm
Seatpost Ø 30.9 mm
Seatclamp Ø 34.9 mm
Front Derailleur N/A
BB Shell 73 mm ISCG05
Tapered Headset Upper: ZS49/28.6
Lower: EC49/40
Ride Guide
Yes Downhill 0 out of 5 stars
Yes Freeride 1 out of 5 stars
Yes Enduro 5.0 out of 5 stars
Yes All-Mountain 4.0 out of 5 stars
Yes XC Trail 4.0 out of 5 stars
Yes Adventure 3.0 out of 5 stars
Yes Touring 1.0 out of 5 stars
Yes XC Racing
