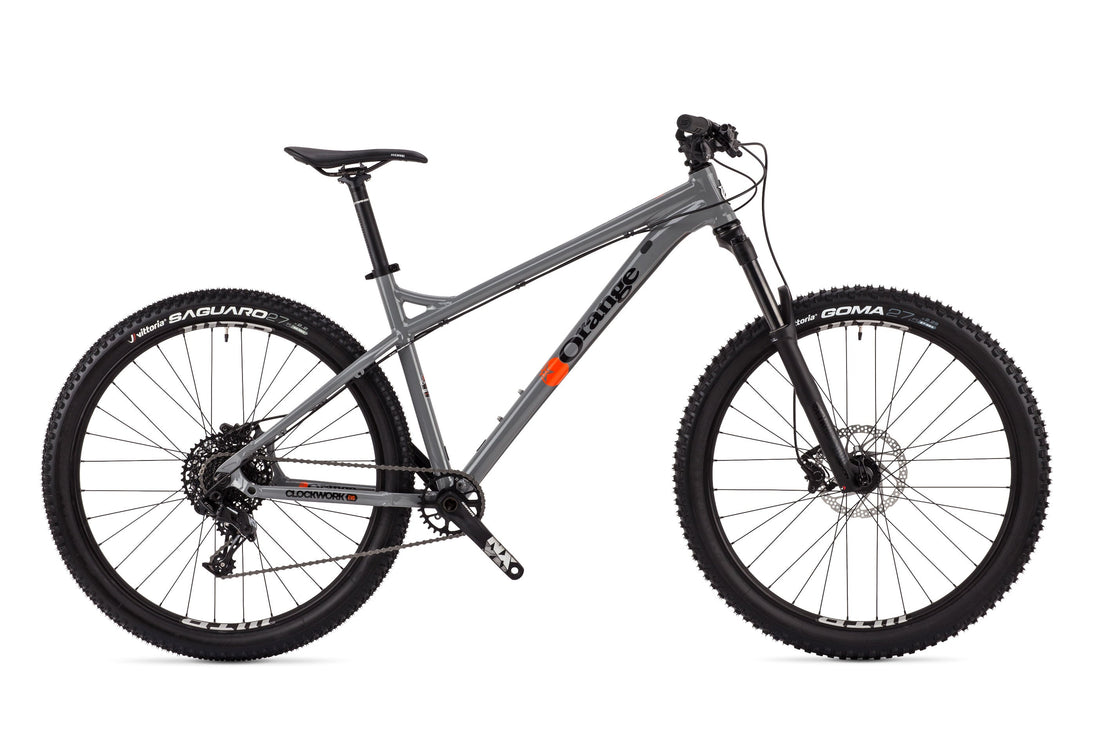

Clockwork Evo comp - 2019

Clockwork Evo comp - 2019

Overview

Why the Clockwork EVO?



  • Designed in Britain
  • Five year frame warranty
  • Custom butted 6061-T6 aluminium
  • 27.5" wheels
  • 130mm travel fork
  • Internal dropper seatpost

  • QR bolt through rear 12 x 148 boost hub spacing

  • Internal dropper seatpost compatible
  • Generous tyre clearance

The Clockwork EVO delivers the benchmark Orange Bikes ride with dependable performance.

Prefer fast rolling 29 inch wheels? Try the Clockwork Evo 29.



The Orange Clockwork range has grown into more of a family than a solitary model. A family of bikes where capability is key. These siblings bring different rolls to their functional heritage.

The new Clockwork EVO sits between the Clockwork and the Crush, firmly hitting a sweet spot for serious minded riders. While the Clockwork is far from sedate, the Crush is a full-gas aggressive hardtail. The Clockwork EVO is the hardtail to fill that gap – fast and furious.

10mm longer in the top tube and a degree slacker in the headangle than the Clockwork, the Clockwork EVO gives the cockpit reach and attitude of a fast serious trail bike.

The frame features neat external routing that tucks the cables neatly under the top tube. A 12x148mm bolt-thru rear axle bolsters up the back end, keeping everything steady through the rough stuff.

Specs & Options

SIZES AND COLOURS

Sizes
S   M   L   XL
Colour
Storm Grey

Select a frame size to choose colour

Decals
Orange/Black Decals

Frame and Fork

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5.

Swingarm
Bolt Type Allen Key Head (Boost 148mm Hub)
Rear Shock
N/A
Headset
FPD 44mm
Fork
RockShox Recon RL 130mm 27.5"

Drivetrain

Bottom Bracket
SRAM GXP
Crankset
SRAM NX 24mm 30t
Rear Mech
SRAM NX 11spd
Chain
SRAM PC1110
Shifters
SRAM NX 11spd
Cassette
SRAM NX 11-42t 11spd 1130
Chain Device

Wheel and Tyres

Wheelset
WTB ST Light i29 on Formula 27
Tyres
Vittoria Goma 2.25 and Saguaro 2.2

Braking

Brakes
Shimano MT400

Finishing Kit

Seatpost
Strange Post 400 30.9
Seat Clamp
Strange QR
Stem
Strange Stalk
Saddle
Kore Fazor
Handlebars
Strange 0.5" Rise 750mm
Grips
Strange 130 Lock - On Grips Black
Pedals
Kore Rivera Thermo

Geometry & Tech Info

2019 Clockwork Evo
Clockwork Evo Geometry
6061-T6 Custom Butted Aluminium
Frame Size S M L XL
Seat Tube Length 16" 17" 18" 20"
A. Head Angle 66° 66° 66° 66°
B. Seat Angle 74° 74° 74° 74°
C. Top Tube 612 625 638 650
D. Effective TT 610 630 650 670
E. BB Height (axle diff) -50 -50 -50 -50
E. BB Height (from ground) 304 304 304 304
F. Chainstay 425 425 425 425
G. Head Tube 100 110 110 120
H. Wheelbase 1158 1178 1198 1220
J. Reach 424 450 473 490
K. Stack 614 621 622 630
Stem Length 50 50 50 50
Standover 658 676 694 730

Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 710 mm Ø tyre.

technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
130 mm 130 mm 130 mm
  Single crown   Triple Clamp
Rear Hub 12 x 148mm
Seatpost Ø 30.9 mm
Seat Clamp Ø 34.9 mm
BB Shell 73mm ISCG05
1.1/8" Headset Upper: ZS44/28.6
Lower: EC44/40
