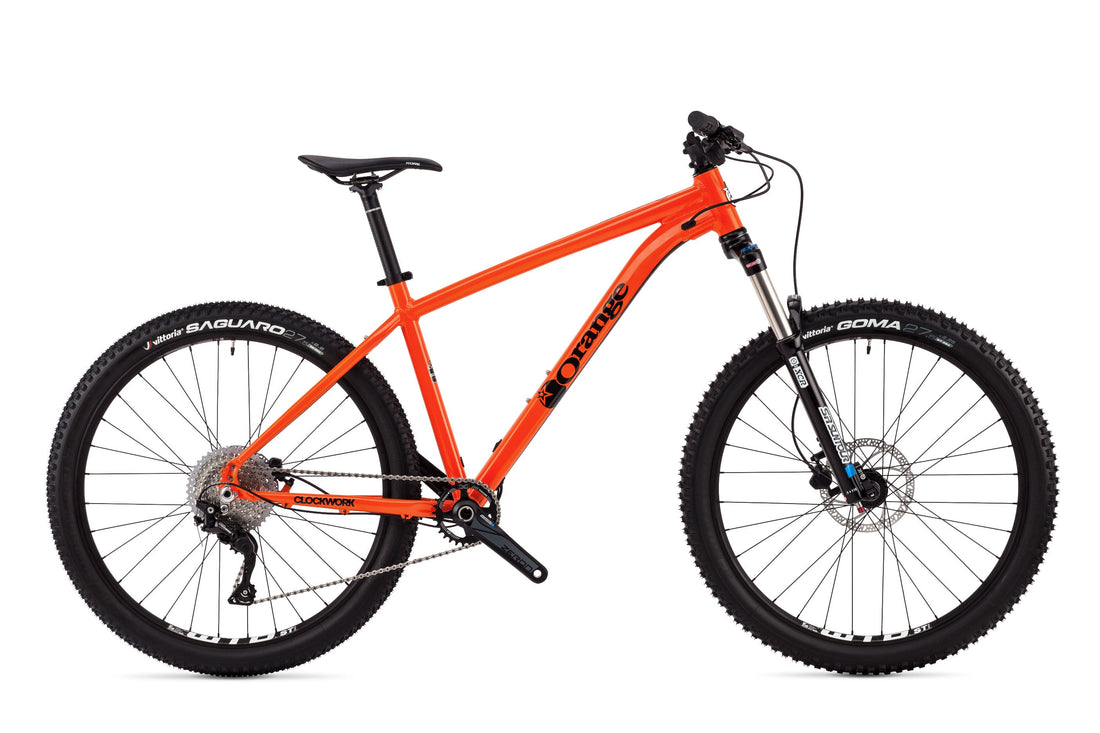

Clockwork - 2019
Overview
Why the Clockwork?
- Frame designed in Britain
- 5 year frame warranty
- Custom butted 6061-T6 aluminium
- 27.5 inch wheels
- Geometry tailored to a 120mm travel fork
- Bolt through 12 x 148 hub spacing
- Internal dropper seatpost compatible
- Generous tyre clearance
- Designed for covering miles with ease
- Confidence inspiring with a zest of sharp handling
- SR Suntour XCR 34 Boost LOR 27.5 Bolt Thru Fork
- Shimano Deore 10spd Shadow Plus drivetrain with Suntour Crankset
- Tektro Brakes
- Strange Cockpit components
We've all been there. A friend you haven't seen in a while says; "Hey, you're into bikes aren't you? I want to get a mountain bike. You know, something decent, what do you recommend? You take a deep breath and think to yourself "Where do I start?"
Well here's the good news. You start right here:
The Orange Clockwork is the member of the family that comes with a 120mm fork and runs on 27.5 inch wheels. So far so good, two boxes ticked. You don't want to recommend anything daunting, complicated or inaccessible. The Clockwork is anything but; it's a great performer, great spec, great all-rounder and the perfect launch pad for anyone young or old. It covers all the bases, will fly around trail centres, load up for a bivvy bag expedition and even get you started in racing.
WIth its straight forward reliable drivetrain, and a cracking Goldilocks 'just right' spec, this classic Clockwork will have your friend converted and you'll soon have a new crew member out on the trails. Tell 'em we sent you.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
Clockwork Geometry
| 6061-T6 Custom Butted Aluminium | ||||
| Frame Size | S | M | L | XL |
| Seat Tube Length | 15" | 17" | 18" | 20" |
| A. Head Angle | 67° | 67° | 67° | 67° |
| B. Seat Angle | 74° | 74° | 74° | 74° |
| C. Top Tube | 597 | 604 | 621 | 638 |
| D. Effective TT | 600 | 620 | 640 | 660 |
| E. BB Height (axle diff) | -48 | -48 | -48 | -48 |
| E. BB Height (from ground) | 308 | 308 | 308 | 308 |
| F. Chainstay | 440 | 440 | 440 | 440 |
| G. Head Tube | 110 | 110 | 120 | 130 |
| H. Wheelbase | 1152 | 1172 | 1193 | 1214 |
| J. Reach | 424 | 444 | 462 | 480 |
| K. Stack | 614 | 614 | 622 | 634 |
| Stem Length | 50 | 50 | 50 | 50 |
| Standover | 672 | 717 | 742 | 780 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 705 mm Ø tyre. | ||||
technical Info
| fork travel | |||||||||
|
|||||||||
| Rear Axle | Length-180mm, Thread-20mm, Pitch-M12X1.75 (Boost) | ||||||||
| Rear Hub | 12 x 148mm | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Seat Clamp Ø | 34.9 mm | ||||||||
| BB Shell | 68 mm | ||||||||
| 1.1/8" Headset | Upper: ZS44/28.6 Lower: EC44/40 |
||||||||
