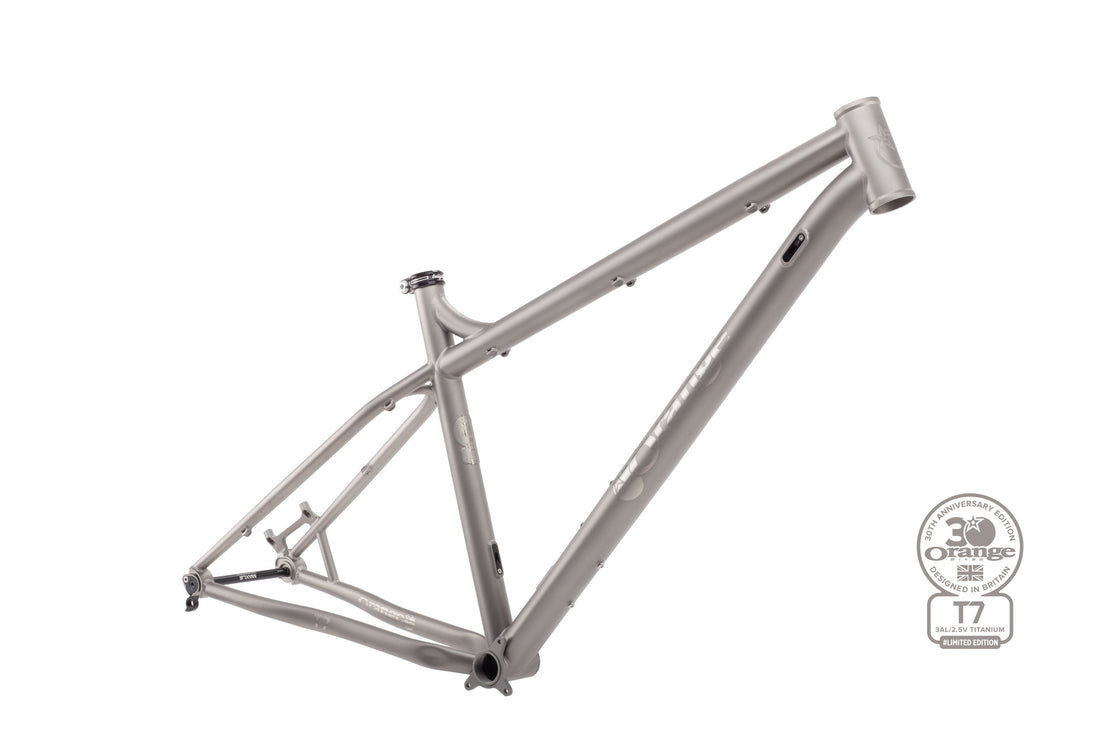

T7 Frame - 2018

T7 Frame - 2018

Overview

Why the T7 Frame?



  • Designed in Britain
  • Five year frame warranty
  • 3AL 2.5V Triple Butted Titanium Tubing
  • Satin Titanium frame with polished graphics
  • 27.5" wheel size
  • Generous mud clearance

Simply put you probably won't find a better 27.5 hardcore trail hardtail frame



The titanium hardcore hardtail most will only dream of

It’s thirty years since Orange BIkes was established, so to celebrate the occasion we really wanted to do something special and the T7 and T9 limited edition bikes are just that, something very special indeed.

In terms of dream hardcore hardtails, you would be hard pressed to better these frames. Exquisitely crafted from 3AL 2.5V Triple Butted Titanium tubing, if those silky looks and polished graphics on their own were not enough, we’ve designed the T7 and T9 to be perfectly balanced to their high-end component builds giving you an unsurpassed ride quality. The unparalleled strength to weight ratio means titanium provides an ultra lightweight frame and unbelievable confidence.

Roughly twice as strong as the nearest competitive material, the compliance titanium gives you makes those long hauls on rough terrain so comfortable, you’ll never want to stop.

The details we’ve designed into the frame are spectacular too, precision CNC machined anodised aluminium bolt-on cable guides, finely worked dropouts, and of course the artistry of the polished frame graphics make these bikes stand head and shoulds above the crowd.

In life, you get what you pay for, and these bikes are no exception. A limited run of only 15 models in each wheel size, each one bearing its own individually numbered ID plate, means you will need to move fast if you want to secure one. If you are lucky enough to end up owning one you will be a member of a very select group indeed.

Specs & Options

SIZES AND COLOURS

Sizes
M   L   XL
Colour
Titanium

Select a frame size to choose colour

Decals
Polished

Finishing Kit

Seat Clamp
Hope Bolted Black

Geometry & Tech Info

2018 T7 geometry
P7 Geometry
3AL 2.5V Triple Butted Titanium Tubing
Frame Size M L XL
Seat Tube Length 17" 18" 20"
A. Head Angle 64.5° 64.5° 64.5°
B. Seat Angle 73° 73° 73°
C. Top Tube 611 624 637
D. Effective TT 620 640 660
E. BB Height (axle diff) -51 -51 -51
E. BB Height (from ground) 298 298 298
F. Chainstay 425 446 425
G. Head Tube 110 110 120
H. Wheelbase 1176 1196 1218
J. Reach 426 456 464
K. Stack 632 632 640
Standover 680 699 743
Stem Length 50 50 50
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 705 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
150 mm 150 mm 150 mm
Rear Hub 148mm x 12mm Boost
Seatpost Ø 30.9 mm
Front Derailleur None
BB Shell 73mm ISCG 05
Tapered Headset Upper: ZS44/28.6
Lower: EC44/40
Ride Guide
Yes Downhill 4.0 out of 5 stars
Yes Freeride 4.0 out of 5 stars
Yes Enduro 5.0 out of 5 stars
Yes All-Mountain 4.0 out of 5 stars
Yes XC Trail 4.0 out of 5 stars
Yes Adventure 4.0 out of 5 stars
Yes Touring 4.0 out of 5 stars
Yes XC Racing 4.0 out of 5 stars

Bike Sizing Guidelines
M
5'5" — 5'10"
L
5'9" — 6'1"
XL
6'0" — 6'5"

Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
