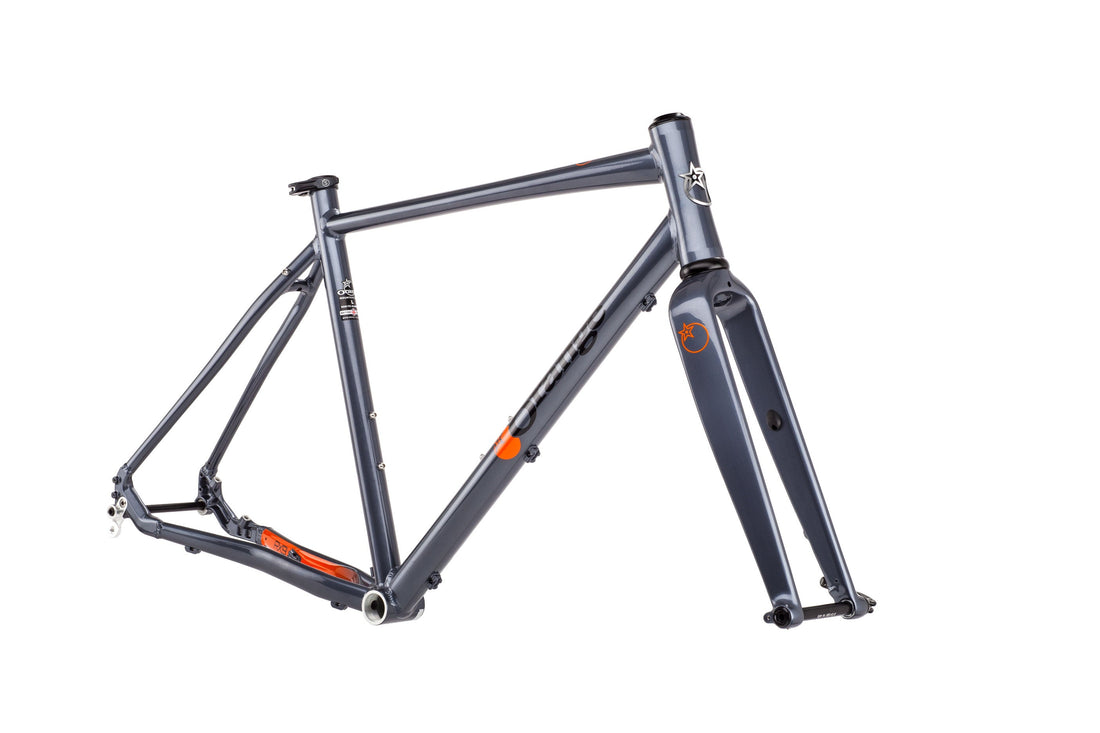

RX9 Frame + Fork - 2018

RX9 Frame + Fork - 2018

Overview

Why the RX9 Pro?



  • Orange Road Cross Bike
  • Lightweight frame designed in Britain
  • 5 year frame warranty
  • Carbon Fork 15mm Bolt Through
  • Updated Frame with improved cable routing and 142x12mm bolt through dropouts
  • Clearance for 42mm tyres
  • Mudguard compatible



DROP BARS, 700cc WHEELS, ROAD & GRAVEL

The RX9 is back, and it’s more fun, more versatile and basically better than ever. We’re not too keen on pigeonholes, so let’s just say this is the Orange for really taking flight, whether that’s on road, off road or even over your shoulder when you want to go wild.

Still built around a responsive but comfy double-butted alloy frame, for 2017 we listened to riders and improved the sizing by shortening the 30.9 seat tube.  Meanwhile, a 142 x 12mm bolt-through rear and 15mm bolt-through fork stiffens things up for a sturdier feel and snappier handling. On top of that, the new chainstay disc mount keeps things tidy and accessible for running panniers and mudguards – great for going the distance whatever the weather.

Whether you’re razzing around or round-the-world bikepacking, the RX9 is right at home on the tarmac, towpath or tropical dirt roads.  Thing is, it’s also built for the rough stuff and loves to prove it: a plucky little hero whose off-road talents are bigger than you think.  A bike for adventures.  An Orange through and through.

See The RX9 take on the Heb Challenge

Specs & Options

SIZES AND COLOURS

Sizes
S   M   L   XL   XXL
Colour
Lava Grey

Select a frame size to choose colour

Frame and Fork

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 700c.

Swingarm
12 x 142mm OLD Bolt Thru Axle
Rear Shock
N/A
Headset
FPD 44mm For Tapered Steerer
Fork
RX9 Rigid Carbon

Finishing Kit

Seat Clamp
Strange QR

Geometry & Tech Info

2017 RX9 Geometry
RX9 Geometry
6061-T6 Double Butted Aluminium
Frame S M L XL XXL
Frame Size (cm) 50 52 54 56 58
A. Head Angle 70° 70° 70° 70° 70°
B. Seat Angle 73° 73° 73° 73° 73°
C. Top Tube 519 536 551 556 582
D. Effective TT 540 555 570 585 600
E. Bottom Bracket Height -70 -70 -70 -70 -70
F. Chainstay 435 435 435 435 435
G. Head Tube 125 140 160 180 195
H. Wheelbase 1024 1040 1056 1072 1088
I. Front & Centre 599 615 621 647 647
J. Reach 368 380 390 400 410
K. Stack 558 574 593 612 625
Standover 745 760 780 802 812
Seat Tube Ø 30.9 30.9 30.9 30.9 30.9
Unless otherwise indicated all measurements are in mm.
Bottom bracket height measured from axle.



RX9 Technical Info
Rear Hub 142 x 12
Rear Axle Length-160mm, Thread-20mm, Pitch-M12X1.5
Front Hub 100 x 15
Front Axle Length-152mm, Thread-20mm, Pitch-M12X1.5
Seatpost Ø 30.9 mm
Front Derailleur Band
BB Shell 68 mm
1.1/8"Headset Upper: ZS44/28.6
Lower: EC44/40
