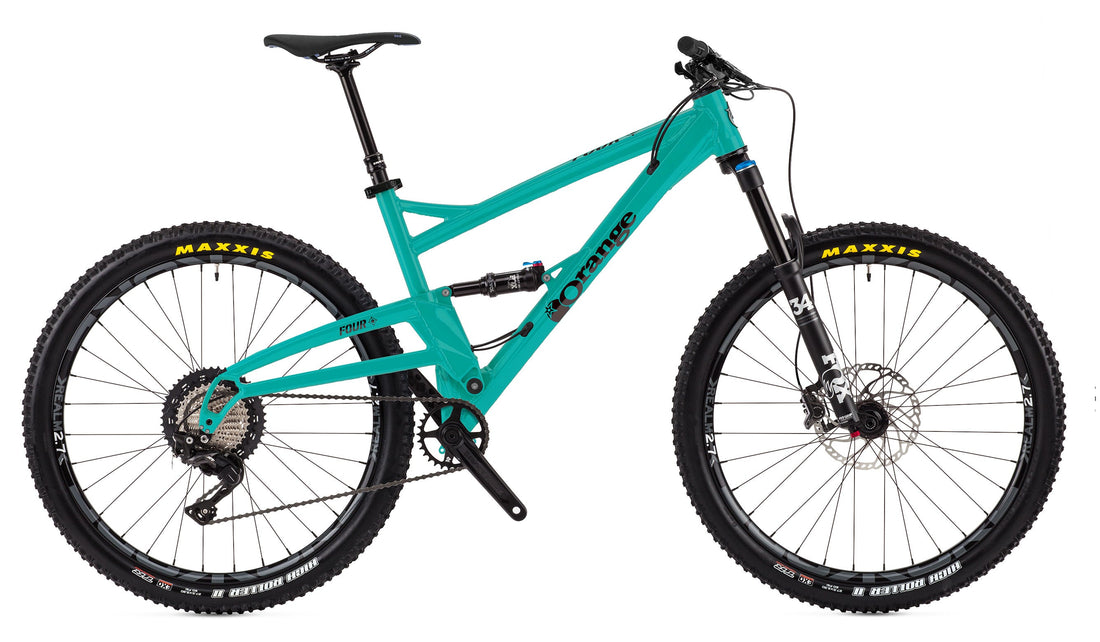

Four Pro - 2018

Four Pro - 2018

Overview

Why the Four Pro?



  • Frame Handbuilt in Britain
  • Short travel, fast and agile 27.5 trail bike with progressive geometry
  • Longer toptube and wheelbase for high-speed stability
  • Compact swingarm with 12x148mm Boost rear hub spacing for precise handling
  • Tuned pivot position for optimal suspension performance with 184x44mm rear shock
  • Suspension travel: 130mm front & 120mm rear
  • 5 year frame warranty
  • Fox Performance 34 Float 130mm 27.5 Fork
  • Fox Float DPS Performance 184 x 44mm Rear Shock
  • Race Face Aeffect Dropper 150mm Seat-Post
  • Shimano XT/SLX 11spd Drivetrain

The optimum blend of price, specification and performance make the Four Pro the perfect choice for the fast trail rider. Perfect for upgrades.



With the Four we have gone all out to build the lightest, toughest short-travel trail bike we could conceive.

With shorter travel we get less frame stress, so we lightened the gauge of the 6061 aluminium frame material. Extra machine processes shaved weight from all the CNCed parts while maintaining their crucial strength. A new split-rear compact swingarm gives us a shorter chain stay and by tucking in a 44x184mm shock we moved the single-pivot point rearwards to make the suspension more active everywhere.

Sitting below the bigger hitting trail burners of the Five and Alpine 6, but vastly more capable that the XC lightweights. The Four is Orange to the core: simple, reliable and built to perform at the highest level, out and back.

It climbs like a Welsh mountain goat and descends like a demon leaving smiles as big as we’ve had on any Orange bike.
Boxes ticked, the Four was born.

Specs & Options

SIZES AND COLOURS

Sizes
S   M   L   XL
Colour
Fizzy Orange

Select a frame size to choose colour

Decals
Black Decals

Frame and Fork

6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 27.5. Rear wheel travel: 120.

Fork
Fox Performance 34 Float 130mm 27.5
Swingarm
Bolt Type Allen Key Head 12 x 174mm (Boost 148mm Hub)
Rear Shock
Fox Float DPS Performance 184x44
Headset
Cane Creek 49mm for Tapered Steerer

Drivetrain

Rear Mech
Shimano XT Shadow Plus 11spd
Chain
SRAM PC1110 11spd
Shifters
Shimano SLX 11spd
Cassette
Shimano SLX 11-46t 11spd
Chain Device
Not Included
Bottom Bracket
Race Face
Crankset
Race Face Aeffect DM30t Steel Ring

Wheel and Tyres

Wheelset
Joytech + Kore Realm 3.0 27.5
Tyres
Maxxis High Roller II 2.3 27.5 Exo TR

Braking

Brakes
Shimano SLX 203/180

Finishing Kit

Stem
Race Face Ride Stealth 50mm x M35
Saddle
Kore Conex
Handlebars
Race Face Chester Stealth 780mm
Grips
Strange 130 Single Lock-On Black
Seatpost
Race Face Aeffect Dropper 150mm
Seat Clamp
Strange QR

Geometry & Tech Info

2017 Four geometry
FOUR GEOMETRY
Monocoque/6061-T6 Reynolds Custom Butted Aluminium tubing
Frame Size S M L XL
Seat Tube Length 15″ 17″ 18″ 20″
A. Head Angle 67° 67° 67° 67° 67°
B. Seat Angle Actual 72º 72º 72º 72º
B. Seat Angle Effective 74º 74º 74º 74º
C. Top Tube 572 579 598 618
D. Top Tube (effective) 590 610 630 650
E. BB Height (from ground) 330 330 330 330
BB height (from axles -25 -25 -25 -25
F. Chainstay 424 424 424 424
G. Head Tube 100 110 110 130
H. Wheel base 1132 1153 1173 1196
T. Rear Travel 120 120 120 120
J. Reach 421 438 458 473
K. Stack 588 598 598 616
Standover 690 730 744 783
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 710 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
130 mm 130 mm 110 mm
  Single crown   Triple Clamp
Shock Length 184 mm x 44 mm
Rear Hub 148 mm x 12mm (Boost)
Seatpost Ø 30.9 mm
Seatclamp Ø 34.9 mm
Front Derailleur none
BB Shell 73 mm ISCG05
Tapered Headset Upper: ZS49/28.6
Lower: EC49/40
Ride Guide
Yes Downhill 0 out of 5 stars
Yes Freeride 0 out of 5 stars
Yes Enduro 3.0 out of 5 stars
Yes All-Mountain 3.0 out of 5 stars
Yes Trail 5.0 out of 5 stars
Yes Adventure 3.0 out of 5 stars
Yes Touring 1.0 out of 5 stars
Yes XC Racing 0 out of 5 stars

Bike Sizing Guidelines
S
5'4" — 5'7"
M
5'6" — 5'10"
L
5'9" — 6'1"
XL
6'0" — 6'5"

Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
