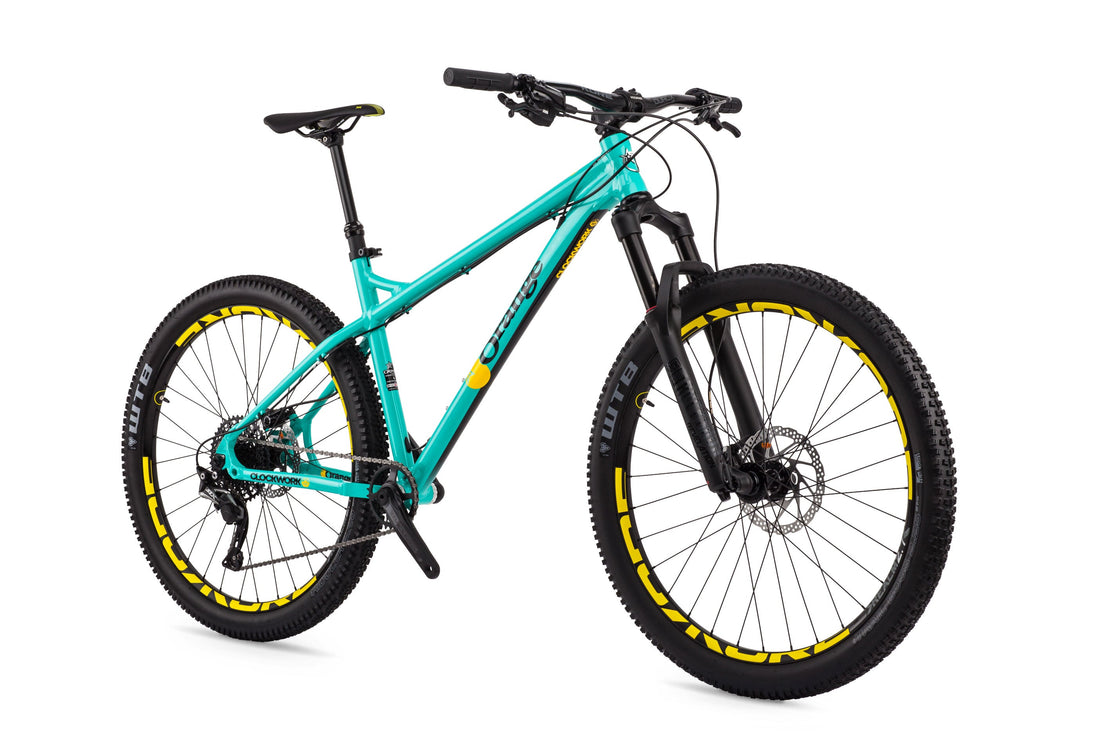

Clockwork 137 S - 2018
Overview
Why the Clockwork 137?
- Designed in Britain
- Five year frame warranty
- Custom butted 6061-T6 aluminium
- 27.5" wheels
- 130mm travel fork
- Internal dropper seatpost
-
QR bolt through rear 12 x 148 boost hub spacing
- RockShox Revelation RC 130mm 27.5 Boost Fork
- Race Face/Shimano SLX 1 x 11spd Drivetrain
- Kore Realm 2.7 Tubeless Ready Wheelset
- Kore 150mm Dropper Post
- Internal dropper seatpost compatible
- Generous tyre clearance
The Clockwork 137 delivers the benchmark Orange Bikes ride with dependable performance.
Prefer fast rolling 29 inch wheels? Try the Clockwork 129.
The Orange Clockwork has grown into more of a family than a solitary model. A family of bikes where capability is key. These siblings bring different rolls to their functional heritage.
The new Clockwork 137 sits between the Clockwork 127 and the Crush, firmly hitting a sweet spot for serious minded riders. While the Clockwork 127 is far from sedate, the Crush is a full-gas aggressive hardtail. The Clockwork 137 is the hardtail to fill that gap – fast and furious.
10mm longer in the toptube and a degree slacker in the headangle than the Clockwork 127, the Clockwork 137 gives the cockpit reach and attitude of a fast serious trail bike.
The frame features neat external routing that tucks the cables neatly under the top tube. A 12x148mm bolt-thru rear axle bolsters up the back end, keeping everything steady through the rough stuff.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
Clockwork 127 Geometry
| 6061-T6 Custom Butted Aluminium | ||||
| Frame Size | S | M | L | XL |
| Seat Tube Length | 15" | 17" | 18" | 20" |
| A. Head Angle | 66° | 66° | 66° | 66° |
| B. Seat Angle | 74° | 74° | 74° | 74° |
| C. Top Tube | 612 | 625 | 638 | 650 |
| D. Effective TT | 610 | 630 | 650 | 670 |
| E. BB Height (axle diff) | -50 | -50 | -50 | -50 |
| E. BB Height (from ground) | 304 | 304 | 304 | 304 |
| F. Chainstay | 425 | 425 | 425 | 425 |
| G. Head Tube | 100 | 110 | 110 | 120 |
| H. Wheelbase | 1158 | 1178 | 1198 | 1220 |
| J. Reach | 424 | 450 | 473 | 490 |
| K. Stack | 614 | 621 | 622 | 630 |
| Stem Length | 50 | 50 | 50 | 50 |
| Standover | 658 | 676 | 694 | 730 |
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 710 mm Ø tyre.
technical Info
| fork travel | |||||||||
|
|||||||||
| Single crown | Triple Clamp | ||||||||
| Rear Hub | 12 x 148mm | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Front Derailleur | Band | ||||||||
| BB Shell | 73mm ISCG05 | ||||||||
| 1.1/8" Headset | Upper: ZS44/28.6 Lower: EC44/40 |
||||||||
Ride Guide
| Yes | Downhill | 4.0 out of 5 stars |
| Yes | Freeride | 4.0 out of 5 stars |
| Yes | Enduro | 5.0 out of 5 stars |
| Yes | All-Mountain | 4.0 out of 5 stars |
| Yes | XC Trail | 4.0 out of 5 stars |
| Yes | Adventure | 4.0 out of 5 stars |
| Yes | Touring | 4.0 out of 5 stars |
| Yes | XC Racing | 4.0 out of 5 stars |
Bike Sizing Guidelines
Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
What they say ...
A right ripper that should sail up hills and relish the descents
Factory Jackson
