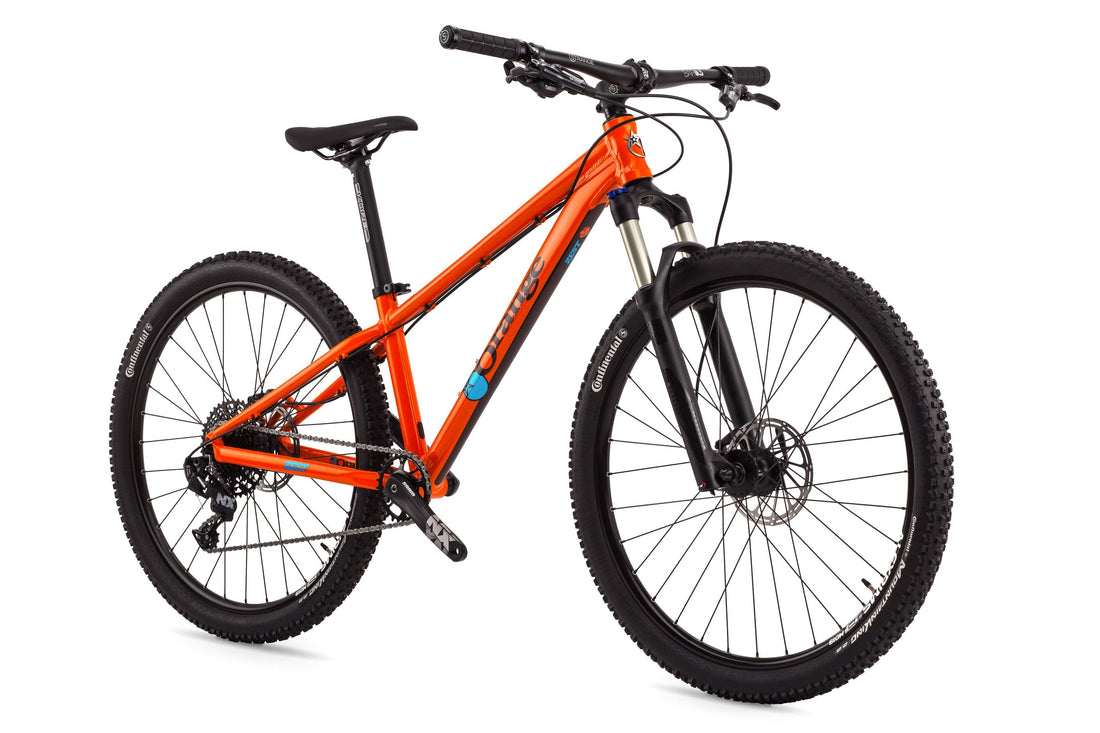

Zest - 2017
Overview
Why the Zest?
- Designed in Britain
- 5 year frame warranty
- Custom butted 6061-T6 aluminium
- 26 inch wheels
- 100mm RockShox 30 Gold RL Solo Air Fork
- SRAM 1x11 speed drivetrain
- SRAM brakes
- 100mm travel fork
- Internal dropper routing & cable routing
- Designed for covering miles with ease
- Confidence inspiring with sharp handling
- Generous mud clearance
A SRAM 11 speed drivetrain with 100mm RockShox 30 Gold Solo Air offer comfort and durability for riders needing a smaller frame format.
Prefer 27.5inch wheels? Try the Clockwork 120.
Classic Orange design in a small package
Built to the same exacting specifications as our iconic aluminium Clockwork frames, this is the all new, 26 inch wheeled, Zest. Designed for people who need a smaller fit, but still want the performance of a ‘proper’ mountain bike, the Zest offers the same ride characteristics we all love about Orange, sharp performance and confident handling.
The geometry on the Zest is bang up-to-date too, longer top-tube and shorter stem, with a long wheel base for stability.
The Zest frame features internal routing for a dropper seatpost, and neat external cable routing like the Clockwork Evo. Ripe for upgrades, but ready to rock straight from the box.
The Zest might be your first foray into the world of mountain biking, or you might be an experienced old hand looking for the right fit. Wherever you are within that range, the Zest is a sound choice of Orange.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 26.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
Zest Geometry
| 6061-T6 Custom Butted Aluminium | |
| Frame Size | One Size |
| Seat Tube | 13" |
| A. Head Angle | 68° |
| B. Seat Angle | 74° |
| C. Top Tube | 546 |
| D. Effective TT | 555 |
| E. BB Height (axle diff) | -48 |
| F. Chainstay | 420 |
| G. Head Tube | 100 |
| H. Wheelbase | 1065 |
| J. Reach | 390 |
| K. Stack | 574 |
| Stem Length | 50 |
| Standover | 644 |
|
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 670 mm Ø tyre. |
|
technical Info
| fork travel | |||||||||
|
|||||||||
| Single crown | Triple Clamp | ||||||||
| Rear Hub | 135 mm | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Front Derailleur | Band | ||||||||
| BB Shell | 68 mm | ||||||||
| 1.1/8"Headset | Upper: ZS44/28.6 Lower: ZS44/30 |
||||||||
Ride Guide
| Yes | Downhill | 4.0 out of 5 stars |
| Yes | Freeride | 4.0 out of 5 stars |
| Yes | Enduro | 5.0 out of 5 stars |
| Yes | All-Mountain | 4.0 out of 5 stars |
| Yes | XC Trail | 4.0 out of 5 stars |
| Yes | Adventure | 4.0 out of 5 stars |
| Yes | Touring | 4.0 out of 5 stars |
| Yes | XC Racing | 4.0 out of 5 stars |
Bike Sizing Guidelines
Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
Prices and Specifications are liable to change without notice.
