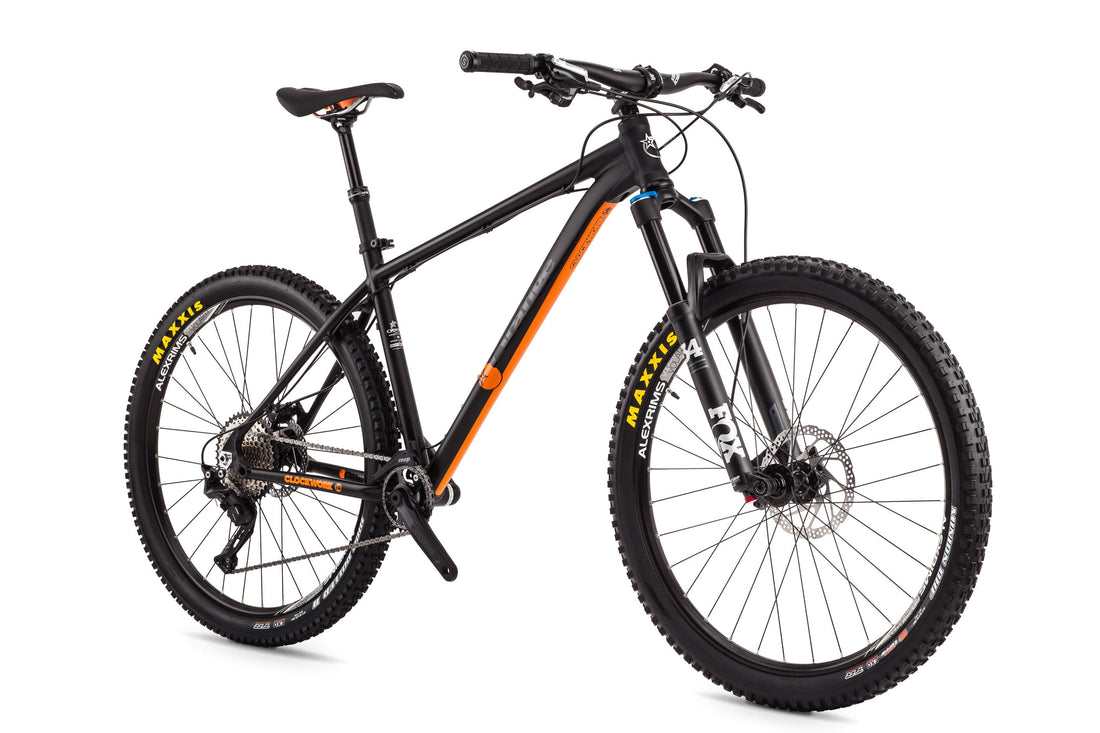

Clockwork Evo Pro - 2017
Overview
Why the Clockwork Evo Pro?
- Designed in Britain
- Five year frame warranty
- Custom butted 6061-T6 aluminium
- 27.5" wheels
- 130mm travel fork
- Internal dropper seatpost
- Designed for covering miles with ease
- Generous mud clearance
- Fox 34 Performance 130mm Boost
- Shimano 1x11 SLX/XT drivetrain
- Shimano brakes
- RaceFace Cockpit components
With its 27.5inch wheels, Fox 34 Performance 130mm Boost fork and Shimano SLX/XT drivetrain the Clockwork Evo delivers the Orange Bikes ride with dependable performance.
Prefer fast rolling 29 inch wheels? Try the Clockwork 100.
Long, lean, mean and keen.
The new Clockwork Evo bridges the gap between the Clockwork 120 and the Crush, firmly hitting a sweet spot for serious minded riders. While we would never say a Clockwork 120 was sedate, the Crush is an aggressive head-banger. The Clockwork Evo is the hardtail to bridge that gap – fast and furious.
10mm longer in the toptube and a degree slacker in the headangle than the Clockwork 120, the Clockwork Evo gives the cockpit reach and attitude of a fast serious trail bike. The new Evo geometry is also designed around a 130mm travel fork.
The frame features neat external routing that tucks the cables neatly under the top tube, while an internal route for the standard dropper post ensures looping hoses are out of the picture. A 12x142mm bolt-thru rear axle bolsters up the back end, keeping everything steady through the rough stuff.
Trail centre hardtail, or out and out explorer, it’s up to you. But however you choose the ride the Clockwork Evo it will be a more than worthy trail buddy.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
Clockwork Evo Geometry
| 6061-T6 Custom Butted Aluminium | ||||
| Frame Size | S | M | L | XL |
| Seat Tube | 16" | 17" | 18" | 20" |
| A. Head Angle | 66° | 66° | 66° | 66° |
| B. Seat Angle | 74° | 74° | 74° | 74° |
| C. Top Tube | 597 | 614 | 630 | 650 |
| D. Effective TT | 610 | 630 | 650 | 670 |
| E. BB Height (axle diff) | -50 | -50 | -50 | -50 |
| E. BB Height (from ground) | 306 | 306 | 306 | 306 |
| F. Chainstay | 425 | 425 | 425 | 425 |
| G. Head Tube | 100 | 110 | 110 | 120 |
| H. Wheelbase | 1156 | 1178 | 1198 | 1224 |
| J. Reach | 445 | 453 | 473 | 491 |
| K. Stack | 608 | 618 | 618 | 629 |
| Stem Length | 50 | 50 | 50 | 50 |
| Standover | 730 | 746 | 763 | 805 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from axle. |
||||
technical Info
| fork travel | |||||||||
|
|||||||||
| Rear Hub | 135 mm | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Front Derailleur | Band | ||||||||
| BB Shell | 73 mm | ||||||||
| Tapered | Upper: ZS44/28.6 Lower: ZS44/40 |
||||||||
Ride Guide
| Yes | Downhill | 4.0 out of 5 stars |
| Yes | Freeride | 4.0 out of 5 stars |
| Yes | Enduro | 5.0 out of 5 stars |
| Yes | All-Mountain | 4.0 out of 5 stars |
| Yes | XC Trail | 4.0 out of 5 stars |
| Yes | Adventure | 4.0 out of 5 stars |
| Yes | Touring | 4.0 out of 5 stars |
| Yes | XC Racing | 4.0 out of 5 stars |
Bike Sizing Guidelines
Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
What they say ...
A right ripper that should sail up hills and relish the descents
Factory Jackson
Prices and Specifications are liable to change without notice.
