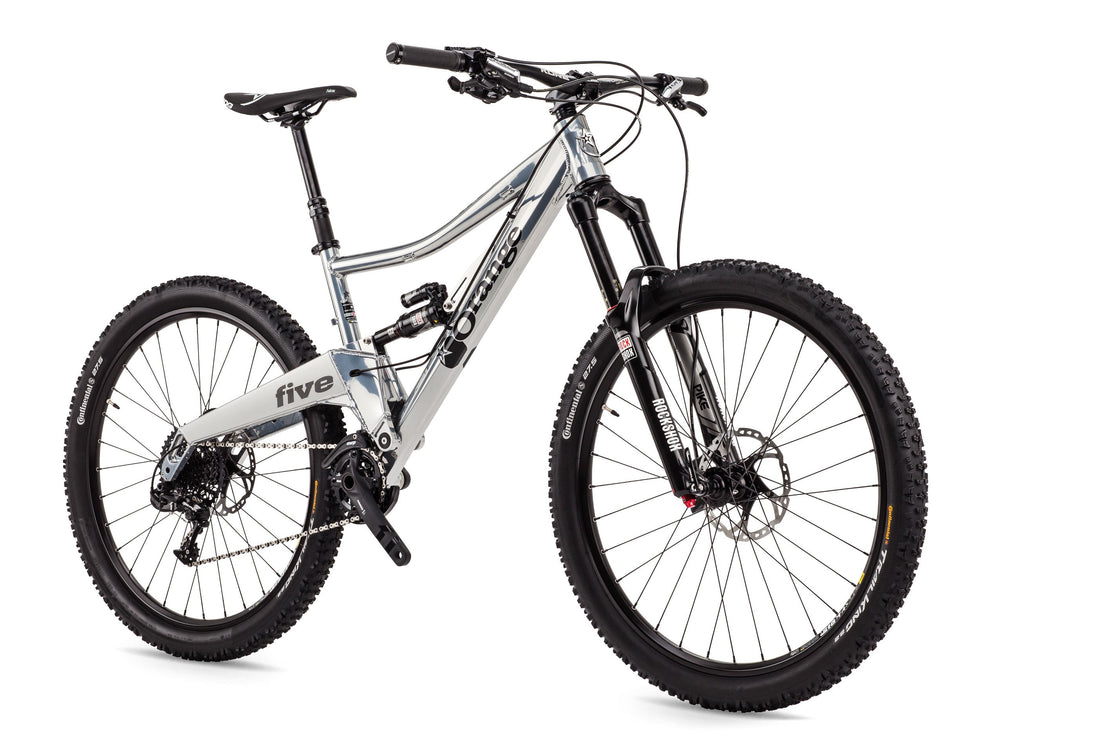

Mk1 Five RS - 2015
Share
Overview
Why the Five RS
- Frame Handbuilt in Halifax, UK
- 27.5" wheels
- Aggressive geometry
- Long toptube and wheelbase for high-speed stability
- Internal dropper routing
- Suspension: 150mm front, 140mm rear
- RockShox Pike RCT3 150mm fork
- RockShox Monarch Plus RCT3 shock
- SRAM X1, 1x11 drivetrain
- Shimano XT brakes
- Hope Pro II Evo/ Mavic 323 wheelset
- RockShox Reverb Stealth seatpost
- Kore Torsion 50mm stem and 800mm wide bars
The dream specification for your dream bike. With a state of the art 1x11 drivetrain, Rockshox Reverb Stealth dropper post and race tuned suspension the RS is possibly the ultimate Five. No compromise, all performance.
The Five is Orange concentrate; a product of undiluted obsession to utter trail brilliance...
You can find the current Five RS here.
This is a bike that does it all, from day-long map-crossing rides to weeks of Alpine descending, all the while putting fun firmly first.
As other manufacturers are rushing out Enduro bikes our trail bike takes another step on its evolutionary path, and, as always, we’ve sweated the details both big and small to keep the Five well ahead of the bermed curve.
The Five now rolls on 27.5inch wheels, offering the benefits of increased traction and natural bump taming that bigger wheels bring while at the same time keeping the lively and responsive feel you expect from a Five. Coupled with 140mm of gimmick-free suspension action this bike takes the fight to the ups and the downs.
Our unique blend of monocoque and Reynolds tubing is mated to a 1.5inch headtube saving weight, adding stiffness and allowing for greater fork and headset options so you can make your Five truly yours. At the other end of the frame 142mm slotted hub spacing couples increased rigidity with quicker wheel changes out on the trail.
Some things have changed but plenty stays the same; our best-in-class geometry, honed for maximum rider enjoyment, and a proven suspension design that never leaves you wanting, are always at the heart of any Five.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Monocoque/Reynolds Custom Butted Aluminium Tube. Wheel Size: 27.5. Rear wheel travel: 140.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info

FIVE GEOMETRY
| Monocoque/6061-T6 Reynolds Custom Butted Aluminium tubing | |||||
| Frame Size | XS | S | M | L | XL |
| Seat Tube Length | 14" | 16" | 17" | 19" | 21" |
| A. Head Angle | 66.5º | 66.5º | 66.5º | 66.5º | 66.5º |
| B. Seat Angle Actual | 72º | 72º | 72º | 72º | 72º |
| B. Seat Angle Effective | 74º | 74º | 74º | 74º | 74º |
| C. Top Tube | 540 | 556 | 573 | 591 | 608 |
| D. Top Tube (effective) | 560 | 580 | 600 | 620 | 640 |
| E. BB Height (from ground) | 340 | 340 | 340 | 340 | 340 |
| BB height (from axles | -12 | -12 | -12 | -12 | -12 |
| F. Chainstay | 431 | 431 | 431 | 431 | 431 |
| G. Head Tube | 100 | 110 | 110 | 130 | 140 |
| H. Wheel base | 1120 | 1141 | 1161 | 1185 | 1205 |
| T. Rear Travel | 140 | 140 | 140 | 140 | 140 |
| J. Reach | 392 | 410 | 430 | 442 | 456 |
| K. Stack | 583 | 592 | 592 | 620 | 637 |
| Standover | 705 | 735 | 745 | 802 | 838 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 700 mm Ø tyre. | |||||
technical Info
| fork travel | |||||||||
|
|||||||||
| Single crown | Triple Clamp | ||||||||
| Shock Length | 190 mm | ||||||||
| Rear Hub | 142 mm x 12mm | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Front Derailleur | E-Type | ||||||||
| BB Shell | 73 mm ISCG (old) | ||||||||
| Tapered Headset | Upper: ZS49/28.6 Lower: EC49/40 |
||||||||
