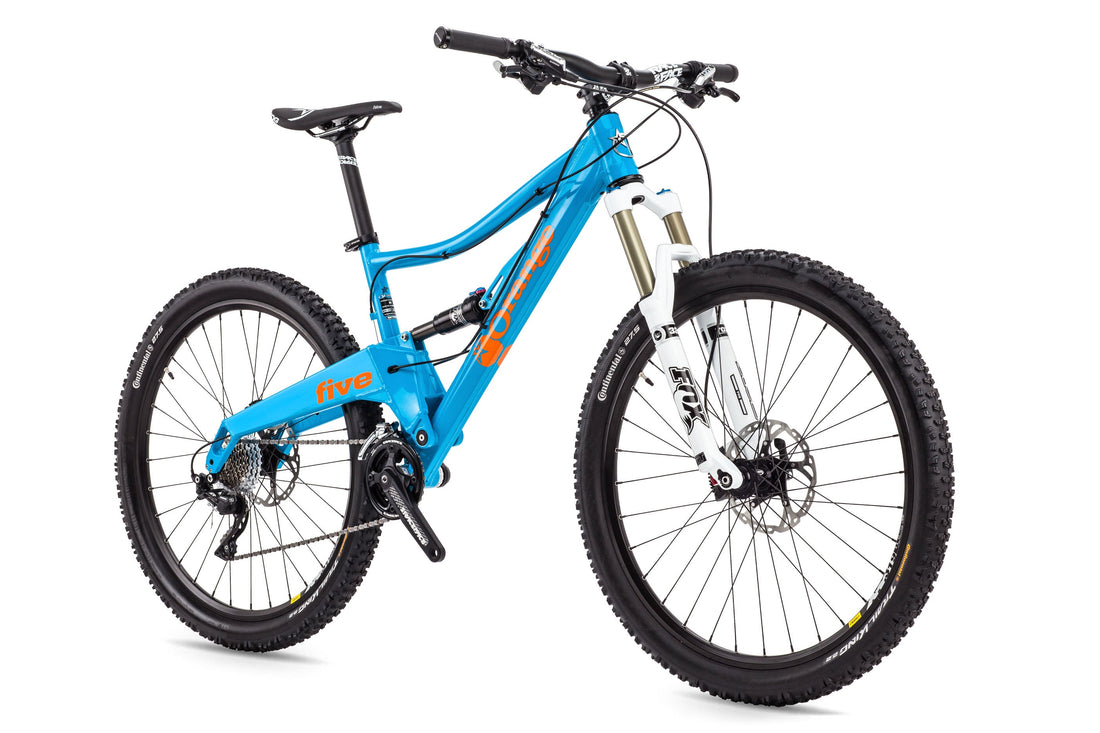

Mk1 Five Pro - 2015

Mk1 Five Pro - 2015

Overview

Why the Five Pro?



  • Frame Handbuilt in Halifax, UK
  • 27.5" wheels
  • Aggressive geometry
  • Long toptube and wheelbase for high-speed stability
  • Internal Dropper Routing
  • Suspension: 140mm front and rear
  • Fox 32 Float Evolution 140mm forks
  • Fox Float Evolution shock
  • Shimano XT drivetrain
  • Shimano XT brakes
  • RaceFace Evolve double/bash chainset
  • Hope Pro II Evo/ Mavic 319 wheelset
  • RaceFace Ride cockpit

The optimum blend of price, specification and performance make the Pro the perfect choice for the trail-hardened rider.

Want to go full bore? You need the Five RS. Bit too flash? Check out the Five S.



The Five is Orange concentrate; a product of undiluted obsession to utter trail brilliance.

You can find the current Five Pro here.

This is a bike that does it all, from day-long map-crossing rides to weeks of Alpine descending, all the while putting fun firmly first.

As other manufacturers are rushing out Enduro bikes our trail bike takes another step on its evolutionary path, and, as always, we’ve sweated the details both big and small to keep the Five well ahead of the bermed curve.

The Five now rolls on 27.5inch wheels, offering the benefits of increased traction and natural bump taming that bigger wheels bring while at the same time keeping the lively and responsive feel you expect from a Five. Coupled with 140mm of gimmick-free suspension action this bike takes the fight to the ups and the downs.

Our unique blend of monocoque and Reynolds tubing is mated to a 1.5inch headtube saving weight, adding stiffness and allowing for greater fork and headset options so you can make your Five truly yours. At the other end of the frame 142mm slotted hub spacing couples increased rigidity with quicker wheel changes out on the trail.

Some things have changed but plenty stays the same; our best-in-class geometry, honed for maximum rider enjoyment, and a proven suspension design that never leaves you wanting, are always at the heart of any Five.

Specs & Options

SIZES AND COLOURS

Sizes
S   M   L   XL
Colour
Jet Black

Select a frame size to choose colour

Frame and Fork

6061-T6 Monocoque/Reynolds Custom Butted Aluminium Tube. Wheel Size: 27.5. Rear wheel travel: 140.

Fork
Fox Float 32 27.5 140 CTD Performance FIT 15QR T/S
Swingarm
Maxle 135x12mm, 142mm Hub Spacing
Rear Shock
Fox Float Evolution Series CTD
Headset
Cane Creek 49mm For Tapered Steerer

Drivetrain

Rear Mech
Shimano SLX Shadow +
Shifters
Shimano SLX
Cassette
Shimano 10spd 11-36T
Chain Device
Shimano SLX
Bottom Bracket
Shimano
Crankset
Race Face Evolve Double 24-32T Bash

Wheel and Tyres

Wheelset
Hope Pro II Evo + Mavic XM319 27.5
Tyres
Continental Mountain King 2.2 27.5\"

Braking

Brakes
Shimano Deore

Finishing Kit

Stem
Raceface Ride
Saddle
Orange SDG Falcon 2015 Chromo
Handlebars
Raceface Ride Riser 740mm
Grips
Strange Lock-On
Seatpost
Raceface Ride
Seat Clamp
Strange QR

Geometry & Tech Info

Five geometry 2015
FIVE GEOMETRY
Monocoque/6061-T6 Reynolds Custom Butted Aluminium tubing
Frame Size XS S M L XL
Seat Tube Length 14" 16" 17" 19" 21"
A. Head Angle 66.5º 66.5º 66.5º 66.5º 66.5º
B. Seat Angle Actual 72º 72º 72º 72º 72º
B. Seat Angle Effective 74º 74º 74º 74º 74º
C. Top Tube 540 556 573 591 608
D. Top Tube (effective) 560 580 600 620 640
E. BB Height (from ground) 340 340 340 340 340
BB height (from axles -12 -12 -12 -12 -12
F. Chainstay 431 431 431 431 431
G. Head Tube 100 110 110 130 140
H. Wheel base 1120 1141 1161 1185 1205
T. Rear Travel 140 140 140 140 140
J. Reach 392 410 430 442 456
K. Stack 583 592 592 620 637
Standover 705 735 745 802 838
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 700 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
140 mm 150 mm 140 mm
  Single crown   Triple Clamp
Shock Length 190 mm
Rear Hub 142 mm x 12mm
Seatpost Ø 30.9 mm
Front Derailleur E-Type
BB Shell 73 mm ISCG (old)
Tapered Headset Upper: ZS49/28.6
Lower: EC49/40
