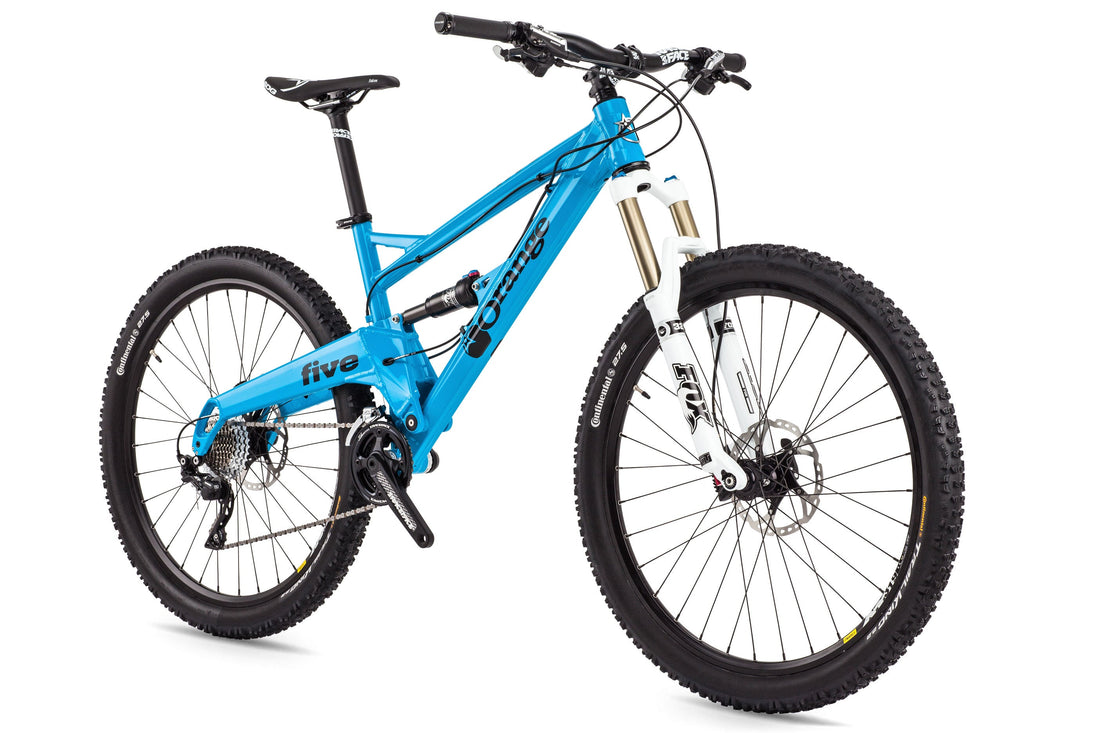

Five Pro - 2015

Five Pro - 2015

Overview

Why the Five Pro?



  • New Design Monocoque Frame Handbuilt in Halifax, UK
  • 27.5" wheels
  • Aggressive trail geometry
  • Longer toptube and wheelbase for high-speed stability
  • Internal Dropper Routing
  • Suspension: 140mm front and rear
  • Fox 32 Float Evolution 140mm forks
  • Fox Float Evolution shock
  • Shimano XT drivetrain
  • Shimano XT brakes
  • RaceFace Evolve double/bash chainset
  • Hope Pro II Evo/ Mavic 319 wheelset
  • RaceFace Ride cockpit

The optimum blend of price, specification and performance make the Pro the perfect choice for the trail-hardened rider.

Want to go full bore? You need the Five RS. Bit too flash? Check out the Five S.



The Orange constant, trail bike brilliance.

While we have a full range of models from 700C urban whippets right through to World Cup downhill monsters, every one with Orange Bikes DNA, there is one bike that many people see as our defining icon; the category defying Orange Five.

It is no secret that it is our best selling model, and it wears that crown for a reason. When push comes to shove the Orange Five will step up to the mark in just about any situation. To tip our hats to an old fairytale, it's the Goldilocks bike in our line-up. Not too big, not too small, for people in the know (and even those who are not) it is 'just right'.

With this new version, by comparison to the previous incarnations, it's a little longer (10 mm to be precise), a little stiffer (15% to be exact), a little slacker (0.5° to be accurate) but overall it is still undeniably a Five, it always will be. Still 140 mm of travel, still handbuilt in Britain, still single-pivot reliable, still loads of fun out on the trail.

The new refinements bring a longer wheelbase, improving climbing capability, reducing the front's urge to lift on steep ascents, and makes an already benchmark descender even more sure-footed and confident. A new lighter shock mount has been designed to improve stress dispersal through the downtube. Not that we had a problem there really, it's always good when we can make things a little better.

Built to go anywhere and back. Since we we launched the first Five over ten years ago we have had a failure rate of just 0.47%. That's not a made up statistic, we checked our records to be sure. It means the five year warranty we provide is rarely called upon.

There are three basic model packs available, Five S, Five Pro and Five RS. Each with a plethora of custom options to built the perfect version for you. What are you waiting for?

You can find the Mk1 Five Pro here.

Specs & Options

SIZES AND COLOURS

Sizes
S   M   L   XL
Colour
Jet Black

Select a frame size to choose colour

Frame and Fork

6061-T6 Monocoque/Reynolds Custom Butted Aluminium Tube. Wheel Size: 27.5. Rear wheel travel: 140.

Headset
Cane Creek 49mm For Tapered Steerer
Fork
Fox Float 32 27.5 140 CTD Performance FIT 15QR T/S
Swingarm
Maxle 135x12mm, 142mm Hub Spacing
Rear Shock
Fox Float Evolution Series CTD

Drivetrain

Bottom Bracket
Raceface
Crankset
Race Face Evolve Double 24-32T Bash
Rear Mech
Shimano XT Shadow +
Shifters
Shimano XT
Cassette
Shimano HG81 10spd 11-36T
Chain Device
Shimano SLX

Wheel and Tyres

Wheelset
Hope Pro II Evo + Mavic XM319 27.5
Tyres
Continental Trail King 2.2 27.5\"

Braking

Brakes
Shimano XT

Finishing Kit

Seatpost
Raceface Ride
Seat Clamp
Strange QR
Stem
Raceface Ride
Saddle
Orange SDG Falcon 2015 Chromo
Handlebars
Raceface Ride Riser 740mm
Grips
Strange Lock-On
Pedals

Geometry & Tech Info

Five geometry 2015 mk2
FIVE GEOMETRY
Monocoque/6061-T6 Reynolds Custom Butted Aluminium tubing
Frame Size S M L XL
Seat Tube Length 16" 17" 18" 20"
A. Head Angle 66º 66º 66º 66º
B. Seat Angle Actual 72º 72º 72º 72º
B. Seat Angle Effective 74º 74º 74º 74º
C. Top Tube 572 581 603 618
D. Top Tube (effective) 590 610 630 650
E. BB Height (from ground) 340 340 340 340
BB height (from axles -12 -12 -12 -12
F. Chainstay 430 430 430 430
G. Head Tube 110 110 130 140
H. Wheel base 1158 1178 1200 1215
T. Rear Travel 140 140 140 140
J. Reach 421 442 456 473
K. Stack 590 590 608 617
Standover 715 730 750 790
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 700 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
140 mm 150 mm 140 mm
  Single crown   Triple Clamp
Shock Length 190 mm
Rear Hub 142 mm x 12mm
Seatpost Ø 30.9 mm
Front Derailleur E-Type
BB Shell 73 mm ISCG (old)
Tapered Headset Upper: ZS49/28.6
Lower: EC49/40
