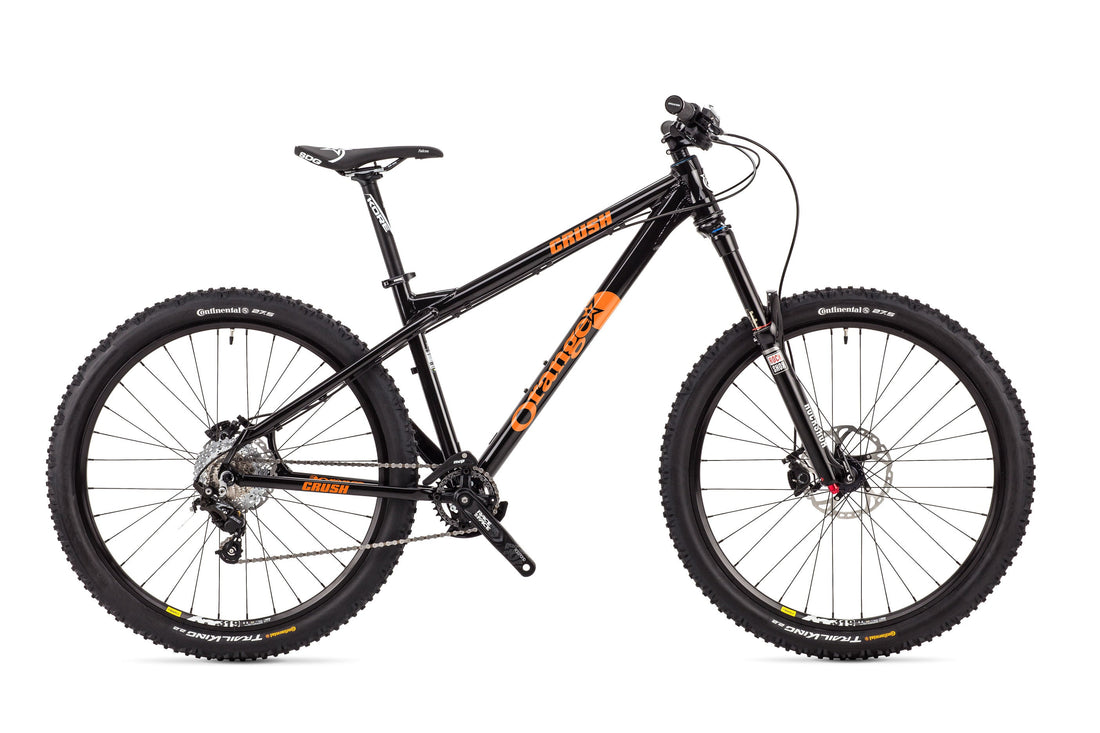

Crush RS - 2015

Crush RS - 2015

Overview

Why the Crush RS?



  • Designed in Britain
  • Five year frame warranty
  • Custom butted 6061-T6 aluminium
  • 27.5" wheels
  • Internal dropper routing
  • ISCG tabs for chain devices
  • Generous mud clearance
  • RockShox Pike RCT3 150mm fork
  • Shimano Zee/SLX drivetrain
  • RaceFace Respond crankset 30t narrow wide chainring
  • Shimano XT brakes
  • Kore Torsion 50mm stem and 800mm wide bars

With a 150mm RockShox Pike, single ring chainset and Shimano Zee drivetrain the Crush RS is built for those who truly appreciate what a long travel hardtail can do.

Single ring a bit too racey? Double and bash more your thing? Take a look at the Crush AM.



The Five’s tag team partner, the Crush is much more than just another hardcore hardtail.

Never happier than when being used as a sledgehammer to crack the line on big mountain trails the Crush wrestles singletrack and smashes corners like a champ with its 27.5inch wheels and 140mm of travel.

We don’t see hardtails as second class bikes we see them as first class fun that’s why we’ve made sure we’ve baked in our acclaimed Orange feel, with geometry that gives confidence and thrills all of the time, just as you’d find on our full suspension models. The Crush punches compromise right in the face.

It’s not all about the downs though, the Crush is just as capable at storming the climbs too thanks to a tough but light aluminium chassis. Internal dropper routing also means the transitions between ups and the downs can be dealt with at speed too.

Whether you’re going up, down or even sideways the Crush will smash it all.

Specs & Options

SIZES AND COLOURS

Sizes
S   M   L   XL
Colour
Jet Black

Select a frame size to choose colour

Frame and Fork

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5.

Swingarm
QR Axle
Rear Shock
N/A
Headset
Cane Creek 49mm For Tapered Steerer
Fork
Rockshox Pike 27.5 150 RCT3 Solo Air

Drivetrain

Shifters
Shimano SLX
Cassette
Shimano HG81 10spd 11-36T
Chain Device
MRP AMG
Bottom Bracket
Raceface
Crankset
Race Face Respond Single 30T Narrow Wide Ring
Rear Mech
Shimano Zee Shadow +

Wheel and Tyres

Wheelset
Hope Pro II Evo + Mavic EN323 27.5
Tyres
Continental Trail King 2.2 27.5\"

Braking

Brakes
Shimano XT

Finishing Kit

Handlebars
KORE Torsion 20mm Rise 800mm Wide
Grips
Strange Lock-On
Seatpost
KORE Torsion
Seat Clamp
Strange QR
Stem
Kore Repute Zero Degree 50mm
Saddle
Orange SDG Falcon 2015 Chromo
Pedals

Geometry & Tech Info

crush geometry 2015
Crush Geometry
6061-T6 Custom Butted OS Aluminium Tube
Frame Size S M L XL
Frame Size 15" 17" 19" 21"
A. Head Angle 67° 67° 67° 67°
B. Seat Angle 73° 73° 73° 73°
C. Top Tube 593 596 602 613
D. Effective TT 590 605 620 635
E. BB Height (axle diff) -48 -48 -48 -48
E. BB Height (from ground) 308 308 308 308
F. Chainstay 443 443 443 443
G. Head Tube 110 120 130 140
H. Wheelbase 1146 1162 1178 1194
J. Reach 406 420 434 444
K. Stack 628 628 637 645
Standover 705 743 767 805
Stem Length 70 70 70 90
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 700 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
140 mm 150 mm 140 mm
  Single crown   Triple Clamp
Rear Hub 135
Seatpost Ø 30.9 mm
Front Derailleur E-Type
BB Shell 73mm ISCG OLD
Tapered Headset Upper: ZS49/28.6
Lower: EC49/40
